Heavy-Duty RC Hydraulic Crane Model Kit Tamiya Style Awesome Toy
Unleash your inner wanderer with this vintage-inspired treasure a little worn a lot loved and radiating effortless cool It’s more than just an item it’s a story waiting to be told a vibe you can feel and a conversation starter you can’t resist Embrace the unexpected and let this unique find become your new favorite piece
1 / 14 Hydraulic Truck-mounted Crane Tamiya Heavy-duty Remote Control Crane Model Kit Modified Version of Boys' Toys
You Are Welcome to Buy S F modelHouse of Flying DaggersPK40002-EHType Boom Crane, in Order to Better Use This Product, Be Sure to Read This Instruction Carefully First, So as Not to Cause Unnecessary Losses.
Product Description
1,1/14Remote Control Heavy-Duty Truck Crane Model,Suitable1/14Tamiya Tow Ratio, Tamiya Tow Modification, Military Card Crane Model Modification.

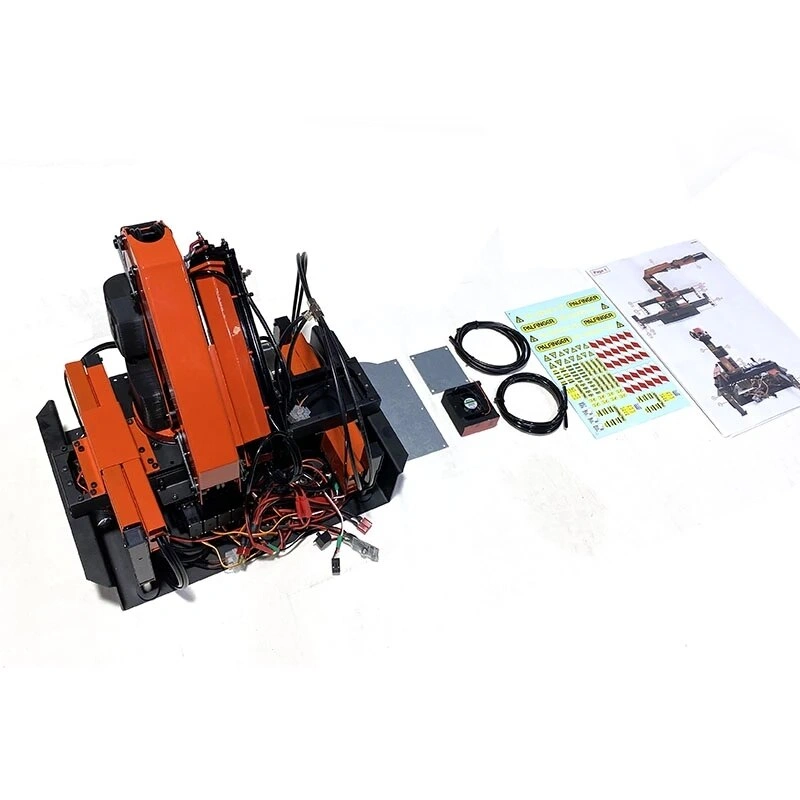

2,The Main Frame1Set, Main Frame Cylinder5Support;
4Support Telescopic Feet,4Telescopic Leg Oil Cylinder;
4The Support,4Support Leg Motor Retarding Device2A Remote Electrical Tilt;
4One-Way Reversing Valve4A9Grams of Steering Gear;
Turntable and Turntable Motor Distribution and Adjustment1Set;
Large Flow and Large Pressure Oil Pump1Set;
The Oil Tank82*52*52A;
Simulation of Beam1Set, Boom Batter Board2Piece, (Used to Copy the Required Hole Position of the Product)
Accompanied by a High-Pressure Oil Pipe1M Oil Hoses1M you guan jia2A;
One Product Instruction.
3,Lifting Power: Hydraulic (Test Lifting3KG, Reason Section 3 The Extension Length of the Telescopic Arm Is Different, the Lifting Force Is Different, and You Know the Real Car. It Is Recommended Not to Lift Heavy Objects. after All, It Is a Model and Pursues Action. It Can Be Used to Lift Simulated Heavy Objects)
4,Telescopic Leg Power: Hydraulic
5,Vertical Support Leg Power:N20Motor Retarding Device plus Leading Screw
Product Specifications
1,Product Size:170(L)X200(W)X200(H)mm(The Reserved Space for Installation Is Not Less170mm)
2,Product Full Expansion Size: Third Telescopic Arm Length650mm;
The Second Arm Height350mm;
Lifting Height834mm(Measured from the Ground)
3,Rotation Angle(Left/Right) 360Degree, Recommended to Be Less360The Degree
4,Product Weight:5.5KG
5,Power Supply:2S-3SLithium Battery (Recommended3S)
6,Control Channel Required by the Product:8Pass (It Is Recommended That Players Use Less12Remote Control above Channel)
7,Hydraulic Oil:NewGeneral National Standard46#Hydraulic Oil (Not Too Thick)
